EWI and Silicone Render, S17 Sheffield
Full Stage-by-Stage Case Study
P&R Solutions installed a full external wall insulation system on a single-storey home in S17, Sheffield (near Millhouses). We fixed 150mm EPS insulation and finished it in flexible silicone render — cutting heat loss, eliminating cold walls, and transforming a tired brick bungalow into a clean, modern, low-maintenance home. Free survey, no deposit.
About This Job
This single-storey property sits in S17, on the south-west side of Sheffield near Millhouses and Dore. Its solid brick walls were uninsulated and tired-looking — the kind of cold, hard-to-heat construction that loses warmth straight through the masonry. The owners wanted a warmer, cheaper-to-run home with a fresh, modern finish, so they called P&R Solutions for a full External Wall Insulation system.
We specified a full 150mm EPS external wall insulation system finished in flexible silicone render. Over EWI the finish has to be silicone — it stays flexible and moves with the insulated build-up without cracking, while being hydrophobic and self-cleaning so it shrugs off Sheffield's wet weather. The off-white colour gives a clean, contemporary look that completely transforms the property's kerb appeal.
The job was documented at every stage below, from the damp-proof base course to the finished coat. The customer, Andy, was delighted with the result and left us a five-star review on Yell. Every P&R Solutions job is backed by a 25-year manufacturer warranty and our strict no-deposit promise.
Every Stage Documented in Detail.
Use the arrows or swipe to move through each stage of the job. Every step photographed, every decision explained.

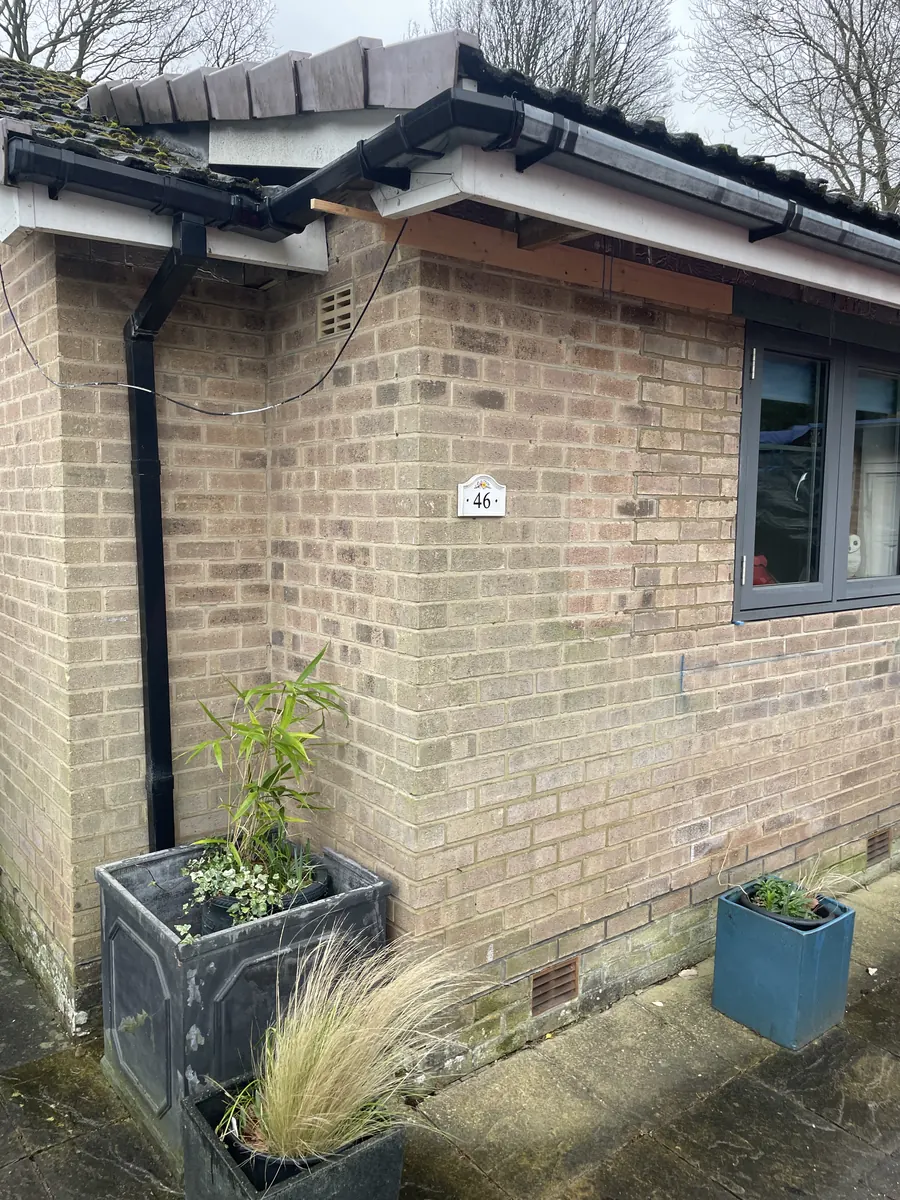

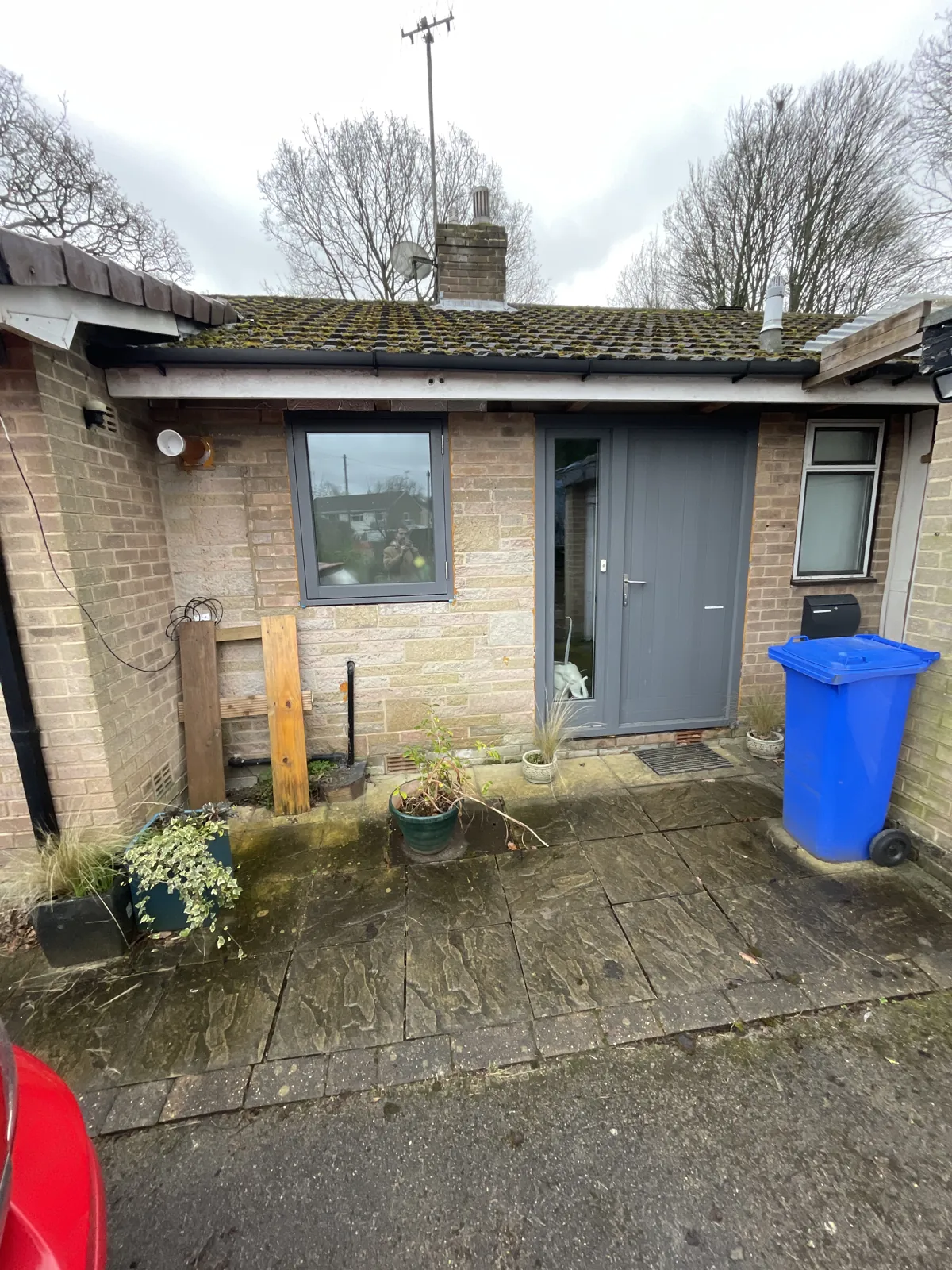

Tired, uninsulated brickwork
Before any work began, this single-storey S17 property had solid, uninsulated brick walls — cold to the touch in winter and looking tired and dated. Solid-wall homes like this lose a large share of their heat straight through the masonry, which is exactly what External Wall Insulation is built to stop.

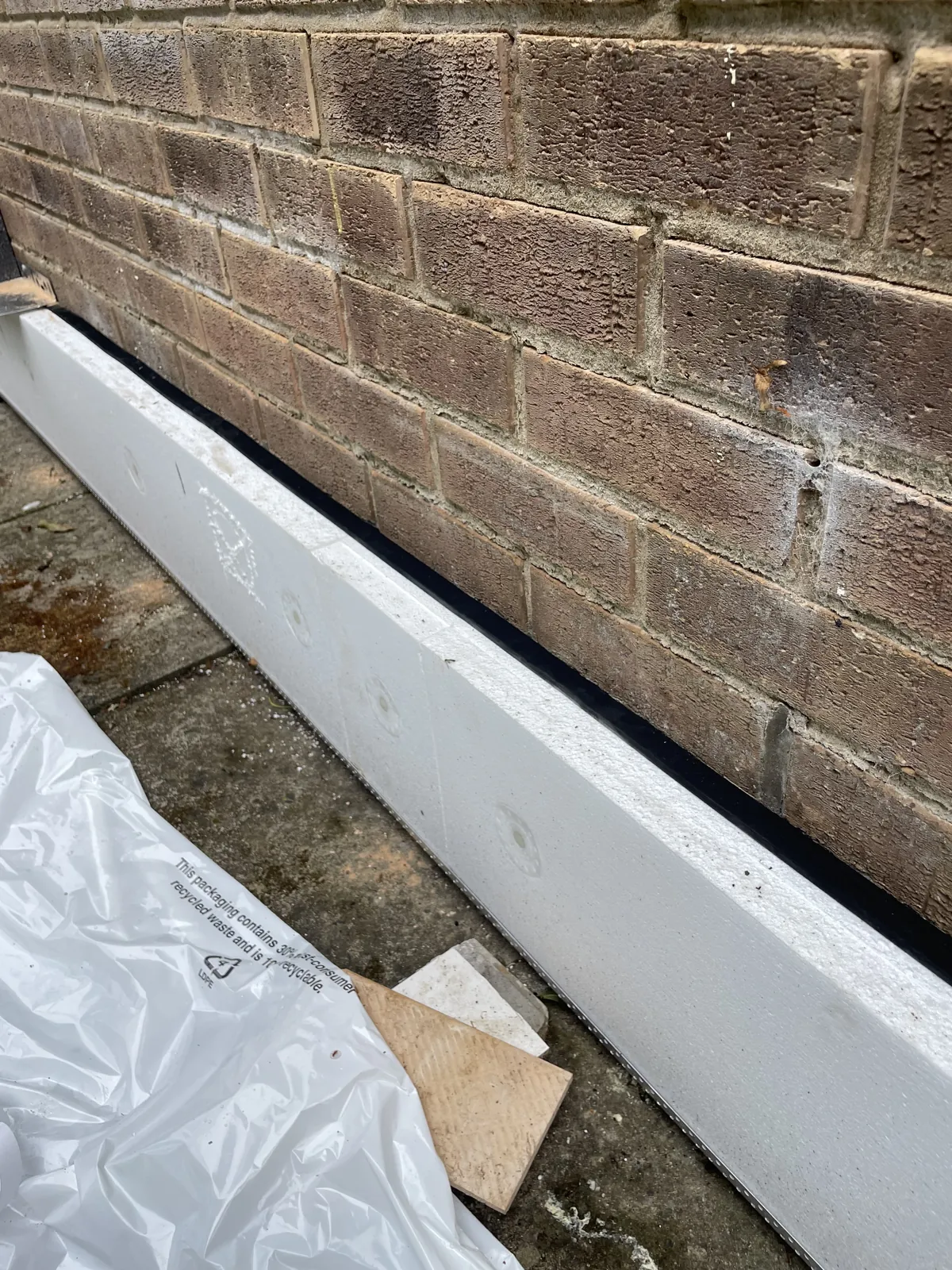

Damp-proof base course fitted
First, a white EPS damp-proof base board is fixed along the bottom of the wall, and the aluminium base track sits on top of it. This lifts the insulation clear of the ground and stops moisture tracking up into the system — getting this base detail right is what keeps an EWI build-up dry for decades.

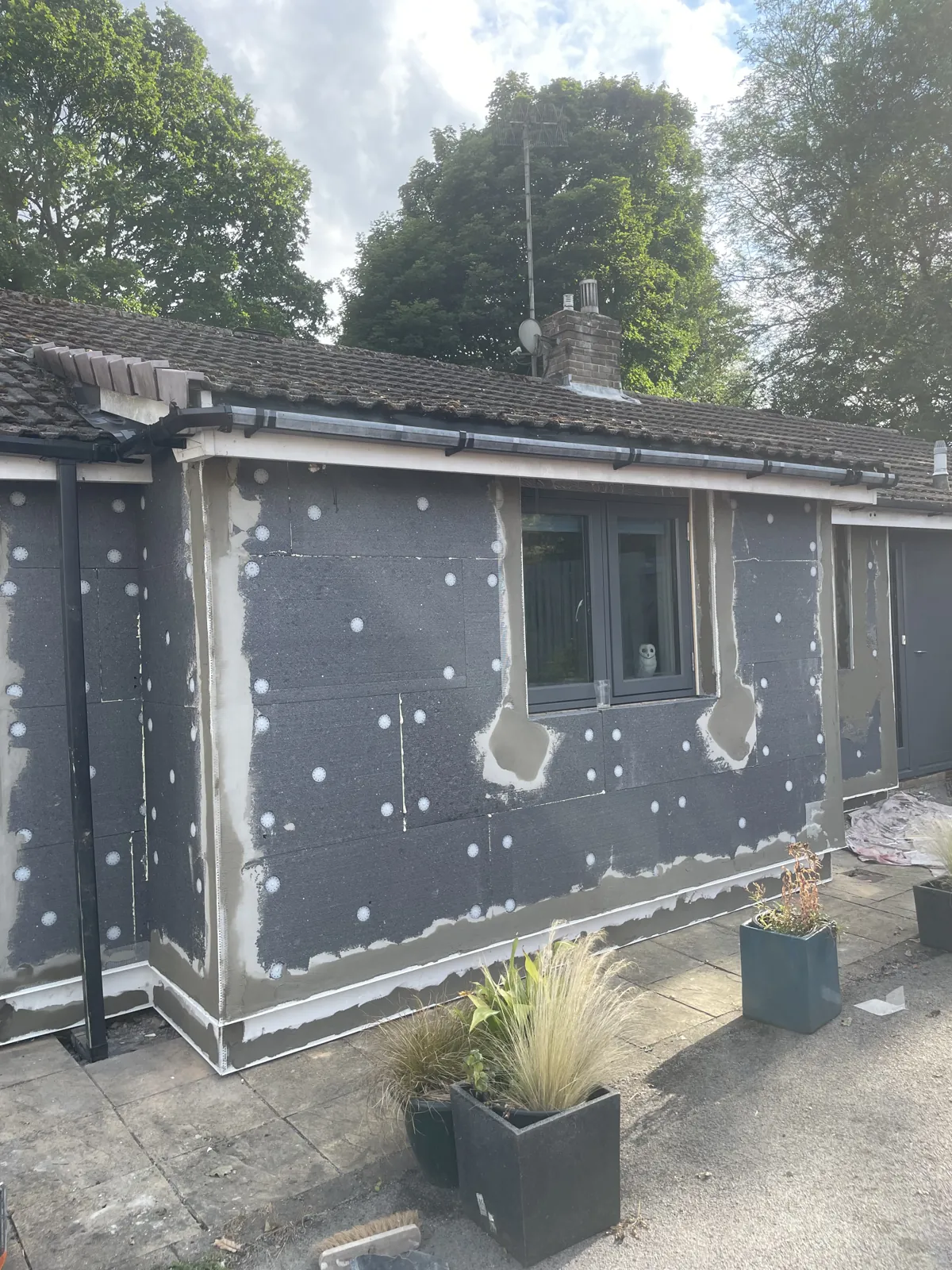

150mm EPS insulation fixed
150mm EPS insulation boards were then mechanically fixed and adhesive-bonded across every elevation, laid in a staggered brick-bond pattern with tight joints. That unbroken layer of insulation — no gaps, no thermal bridges — is what delivers the warmth and the lower heating bills.

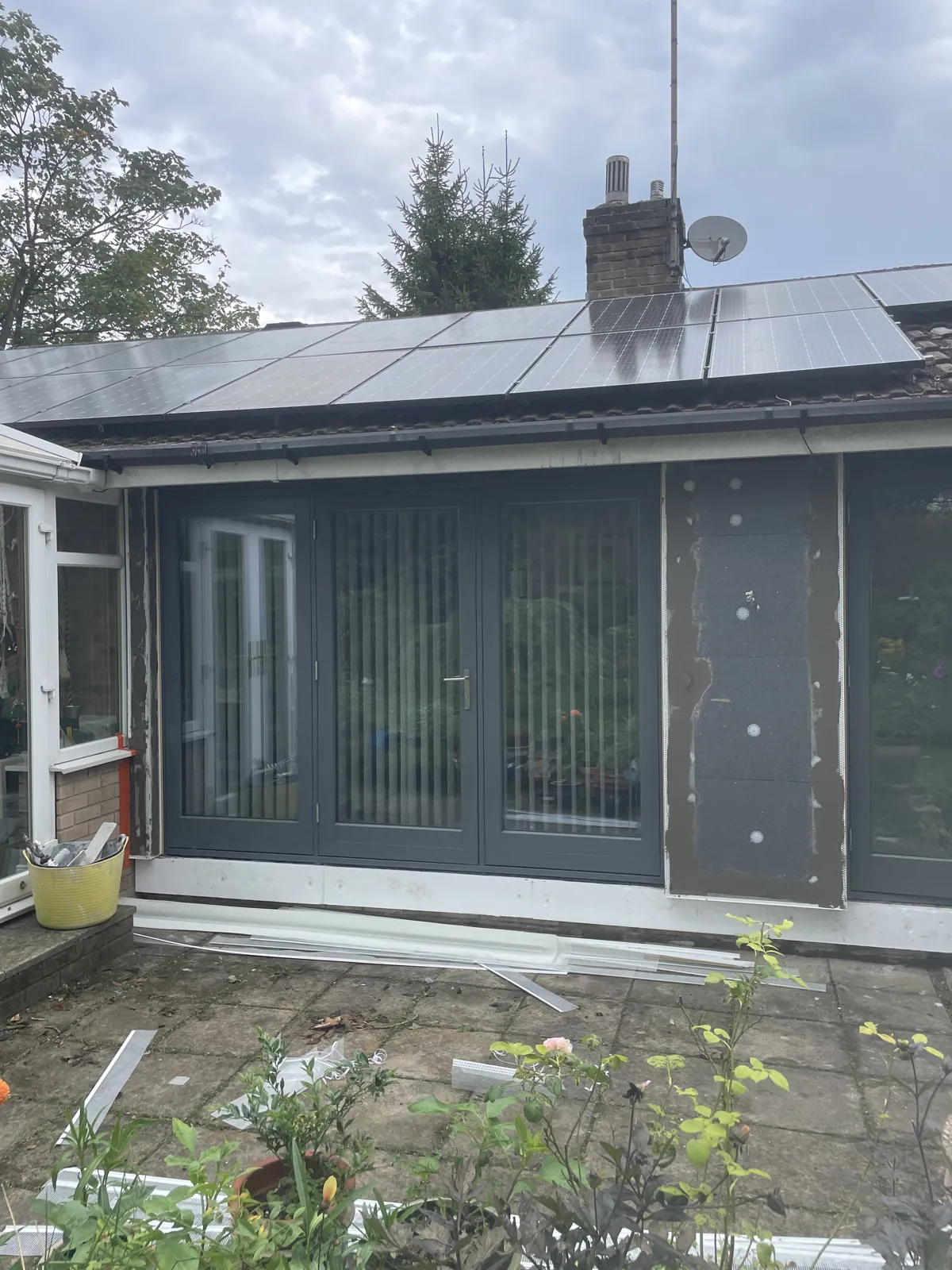

Detailed around every opening
Boards were carefully cut and bonded around every window, door, the bi-fold opening and the existing solar fixings. Getting the detailing right at reveals and junctions is what separates an EWI job that lasts decades from one that cracks or lets water in.

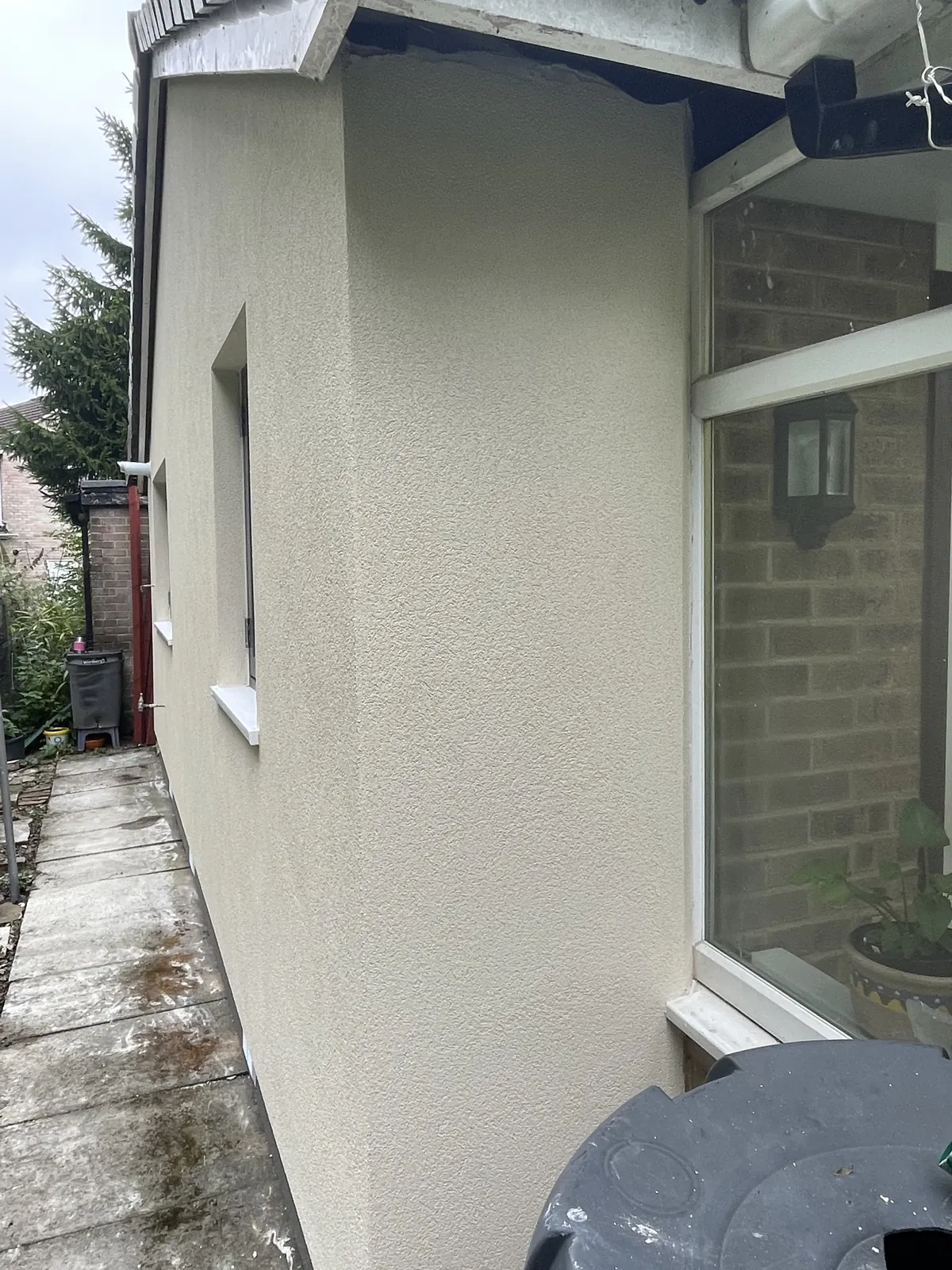

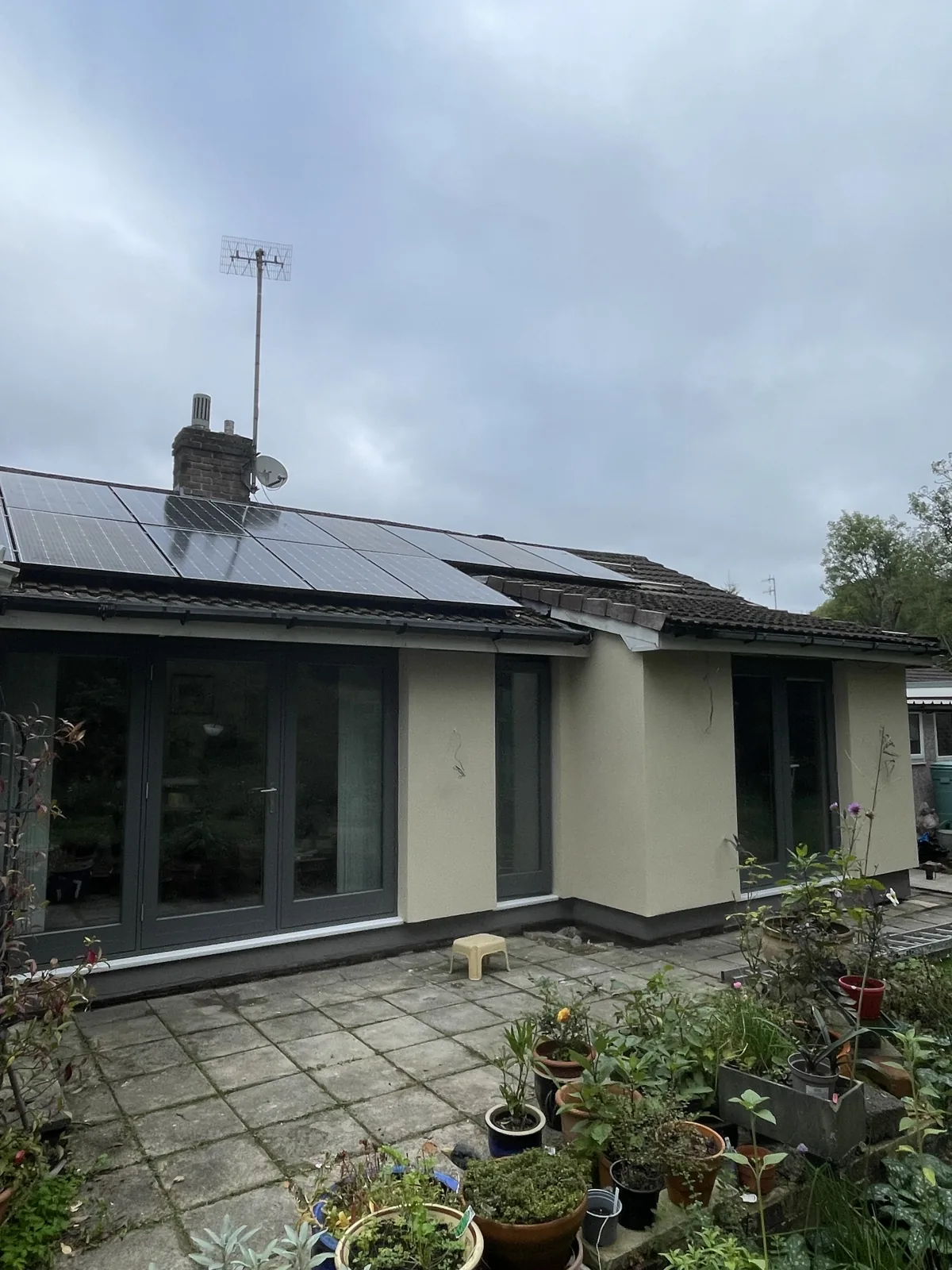

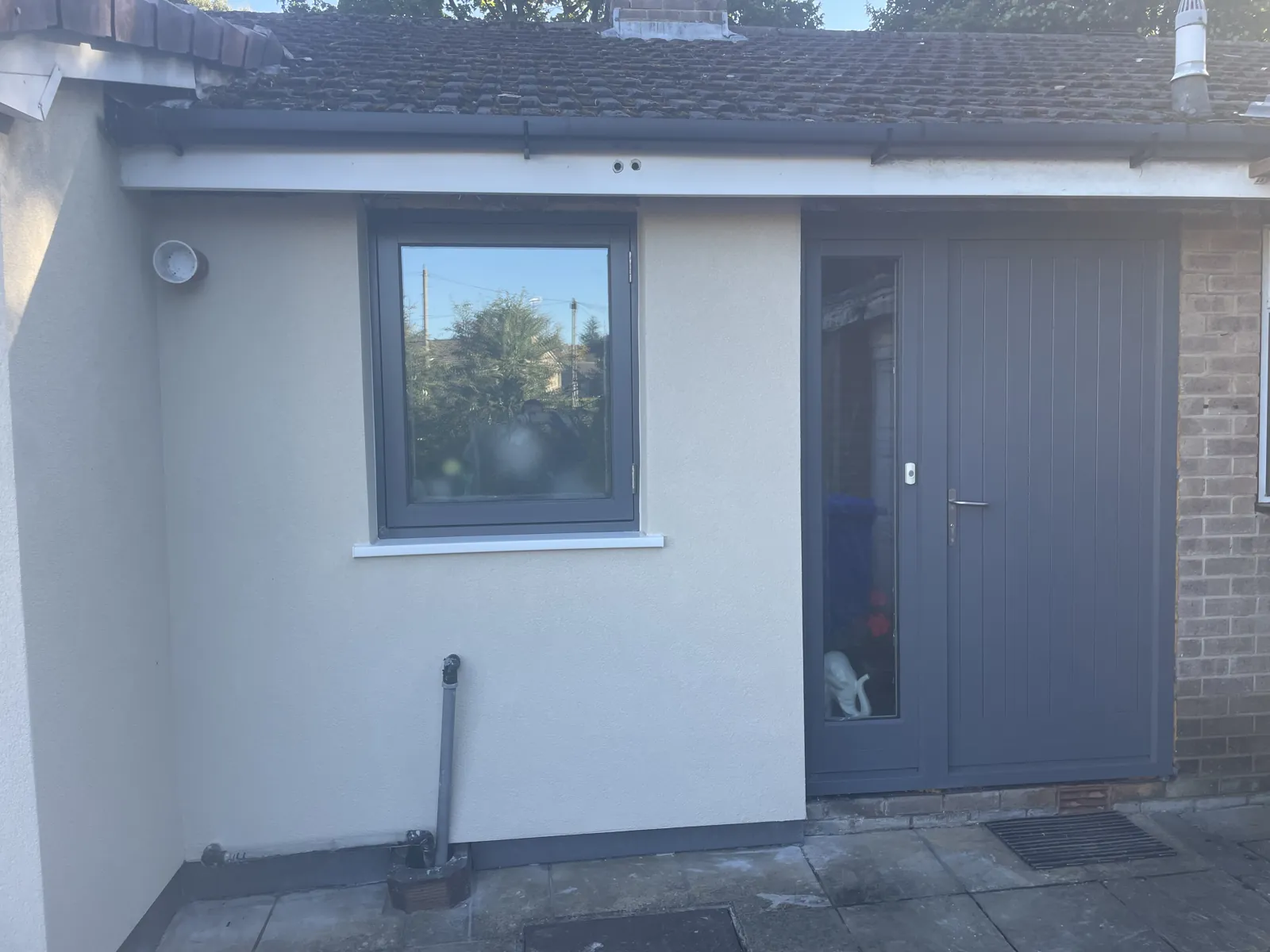

Finished in silicone render
Finally, a flexible silicone topcoat in a clean off-white finish. Over EWI the finish has to be silicone, as it moves with the insulated build-up without cracking, and it is hydrophobic and self-cleaning so it stays bright through Sheffield's wet winters. Scaffold struck, site cleared, 25-year manufacturer warranty issued.

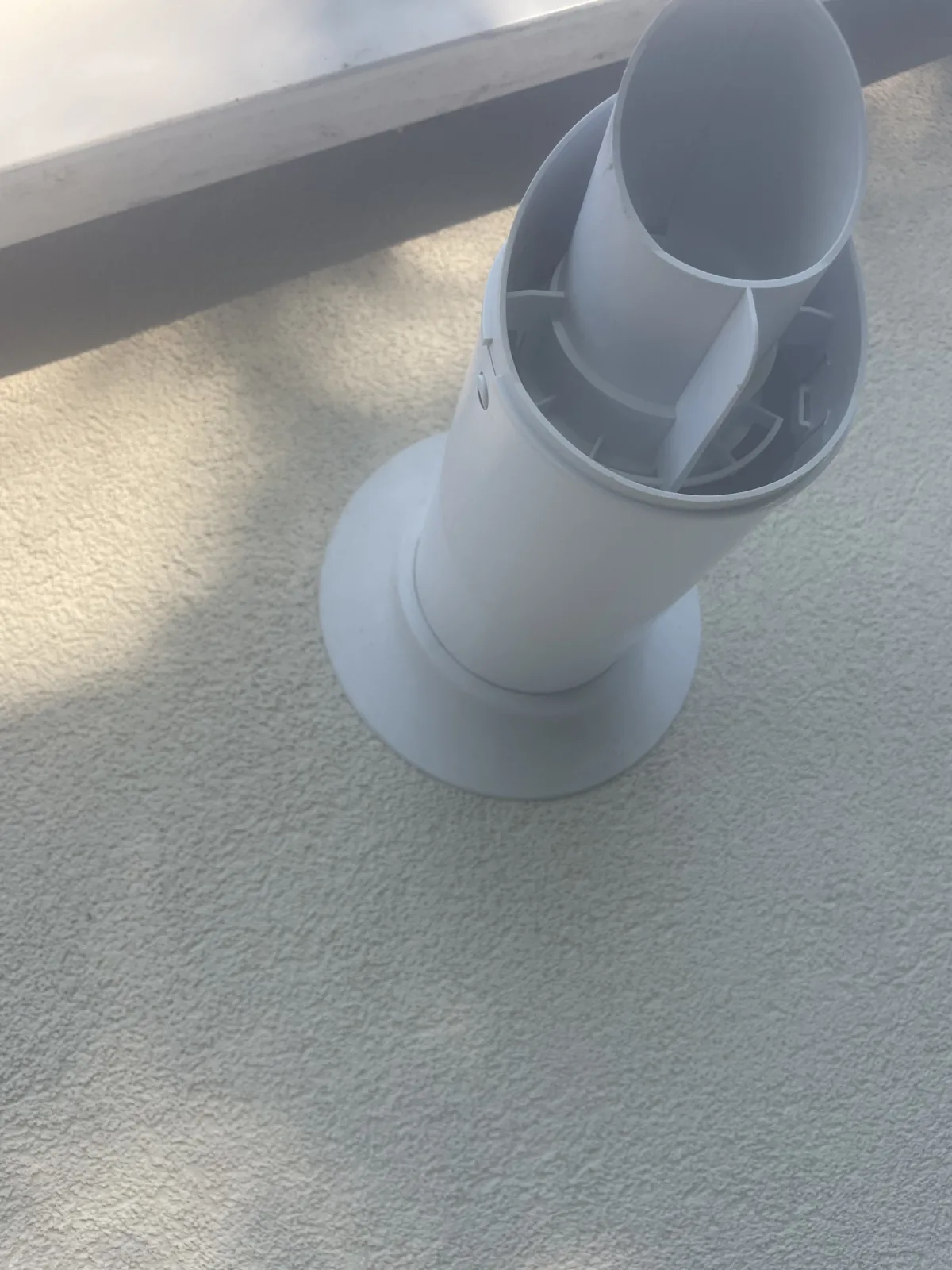

Boiler flue extended to clear the render
Adding External Wall Insulation makes the wall around 170mm thicker, so the boiler flue has to be extended to suit. We fit a manufacturer-approved flue extension kit with a neat wall collar, so the terminal still discharges well clear of the finished render face. This is a requirement under BBA certification and Gas Safe / Building Regulations — an easy detail to skip, but essential for a safe, compliant EWI system.
Job Complete. Client Delighted.
“Chris has done a superb job of our external insulation and rendering. He works diligently to make sure that the job is finished to a high standard and in the shortest time. He is there when he says he will be and makes sure there isn't a mess. He doesn't "cut corners" and the finished work looks stunning. It has been a joy to have him around for the fortnight.”
Frequently Asked Questions.
This S17 external wall insulation job took around two weeks from start to finish — scaffold up, the damp-proof base course, fixing the 150mm EPS insulation, reinforced base coat and mesh, then the final silicone topcoat, before the scaffold came down and the site was left clean.
A full 150mm EPS external wall insulation system finished with a flexible silicone topcoat in off-white. Silicone is the right finish over EWI because it stays flexible and won't crack as the insulated build-up moves, and it is self-cleaning and water-repellent — ideal for Sheffield's wet climate. The 150mm of EPS delivers the bulk of the energy saving.
Full EWI systems in Sheffield typically cost £90–£150/m² depending on insulation thickness and finish, with most whole-house projects between roughly £8,000 and £15,000 including scaffold. Every quote is free, fully itemised after a survey, and there is no deposit — you pay only on completion. EWI may also qualify for 0% VAT and grant schemes.
The 150mm EPS + Silicone used on this project carries a full 25-year manufacturer product warranty. On top of that, P&R Solutions provide a 5-year workmanship guarantee on all labour. Zero deposit — the homeowner paid only when the job was 100% complete and they were happy with every detail.
Yes — we cover all Sheffield postcodes including S1 through S36. If you're in S17 or anywhere else in Sheffield and want a free site survey, call 07595 399525 or use the quote form. No deposit. Fully itemised quote. We'll advise which system is best for your property.
